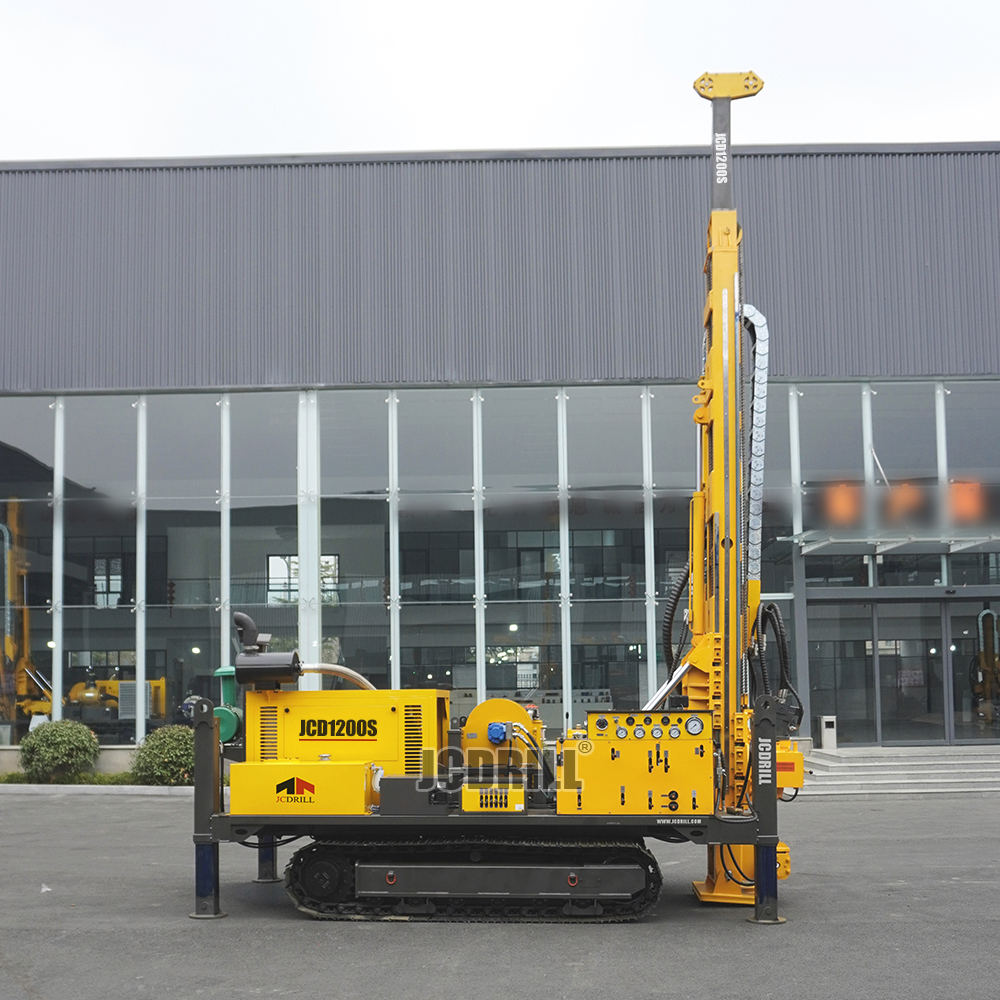

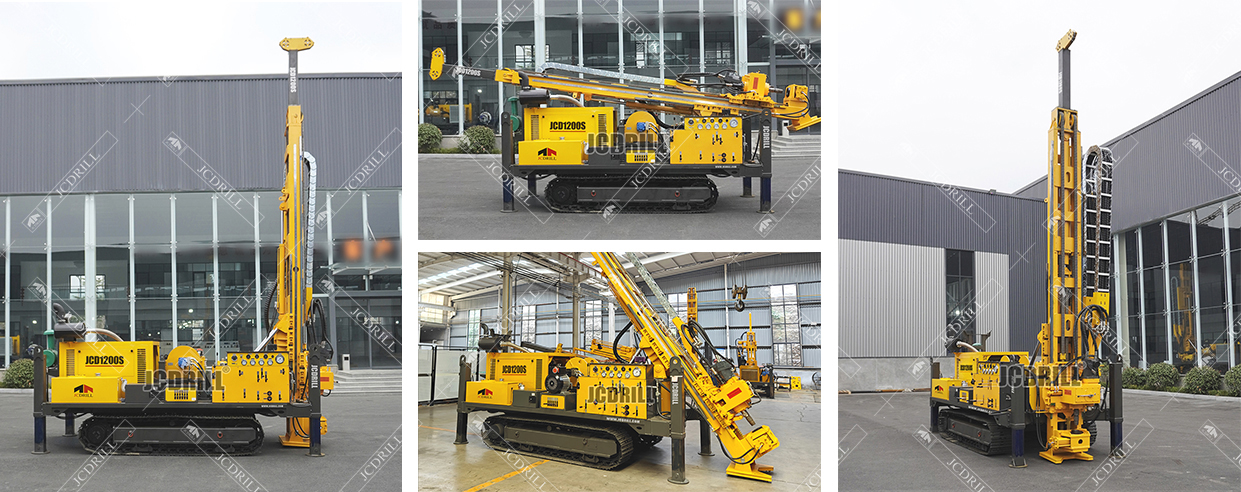

JCD1200S Core Drill Rig Hydraulic Borehole Drilling Equipment Geological Core Drilling Machine

Hold Diameter: HTW-NTW-BTW

Drilling Depth:1500 1200 500 m

Drilling Method: Wireline Diamond Core Drilling

>> Application

JCD1200S-The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China.

Inquire Now Chat Now

PRODUCT DESCRIPTION

>> Characteristics

This type of drill rig could substitute imported products. It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.

The drill rig is equipped with a series motor driving pump. The feeding and lifting of rotator are driven in the structure of cylinder directly pushing, with a 3.5m(11.5 feet) stroke. The rotation of spindle is driven by a single engine. It has four mechanical shifts of range of speeds, and the speed could be adjusted hydraulicly with stepless change.

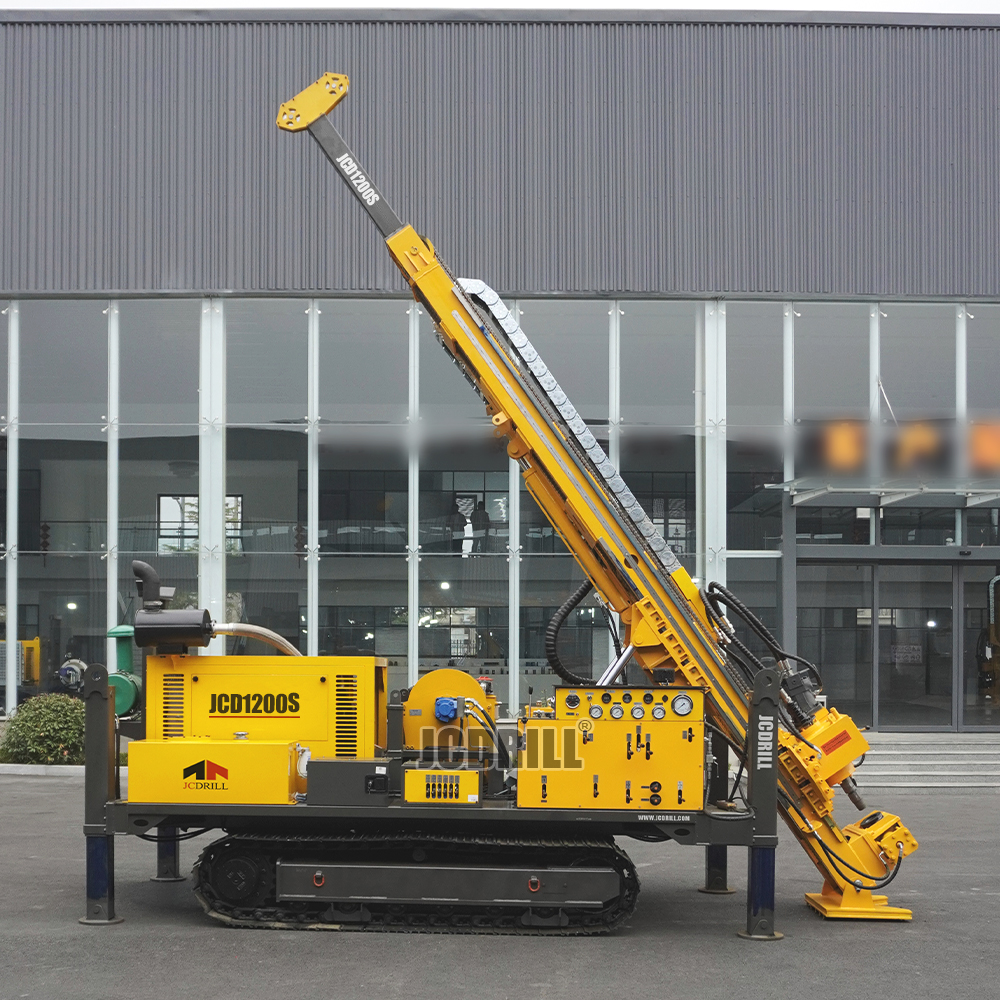

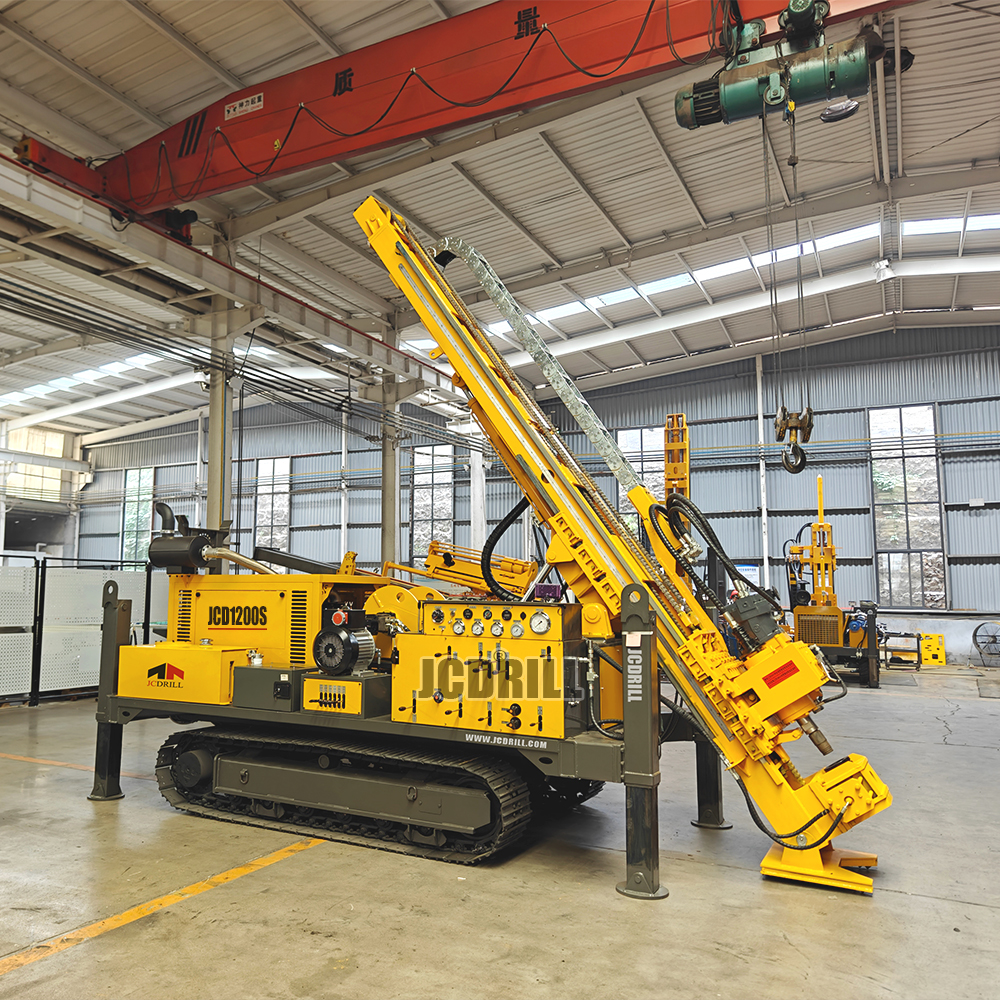

The rig is simple in structure. It is light and easy for transference; the mast has the functions of sliding and touching ground; the spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and relocation. The spindle hole is in large diameter.

>> Specification

Specification	Unit	JCD1200S
Drilling Capacity
Drilling Capacity		HTW-NTW-BTW
Drill Depth	m	500-1200-1500
Hydraulic System
Rated Pressure	MPA	28
Rated Flow	L/min	330
Heat Dissipation		Air Cooling
Engine
Brand		YUCHAI
Type		Turbocharger
Rated Speed	RPM	2400
Rated Power	kW	140
Drilling System
Torque	N.M.	1000-3800
Speed	RPM	1300
Tower Type		One-piece Ground-touching
Feeding Stroke	mm	3500
Drilling Angle	°	45-90
Max. Pull Up Capacity	Ton	30
Max. Push Down Capacity	Ton	15
Rope Hoist
Lifting Capacity	kg	1000/ 8000
Speed	RPM	100-300/ 0-50
Wire Rope Diameter	mm	6/ 16
Rope Capacity	m	1200/ 40
Walking System
Operation Type		Manual & Remote Control
Walking Speed	KM/H	3.5
Climbing Angle	°	40
Mud Pump
Model		BW-200
Flow	L/MIN	0-200
Pressure	MPA	0-10
Hydraulic Generator
Type		Variable Frequency Brushless, Maintenance-Free
Power	kW	11
Voltage	V	220/ 380
Weight & Dimensions
Transport Size	mm	6000* 2100* 2400
Weight	Ton	9.5
