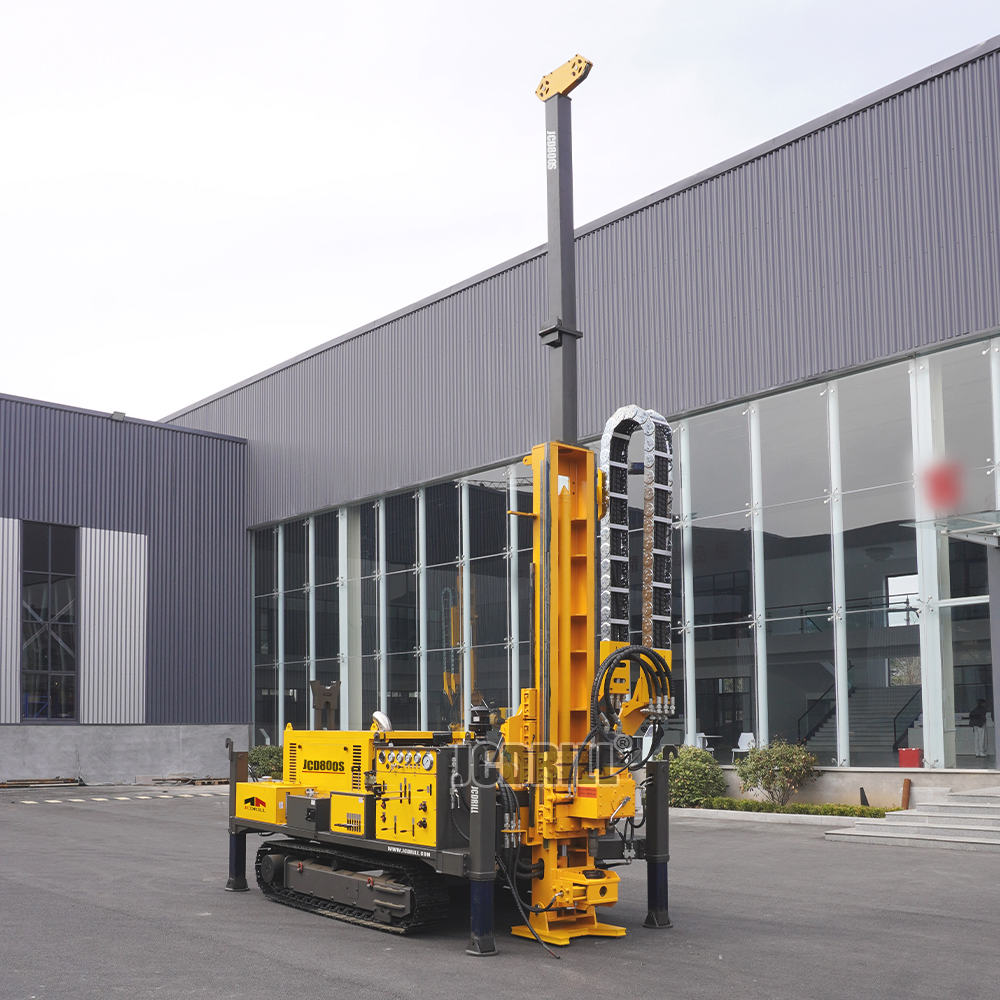

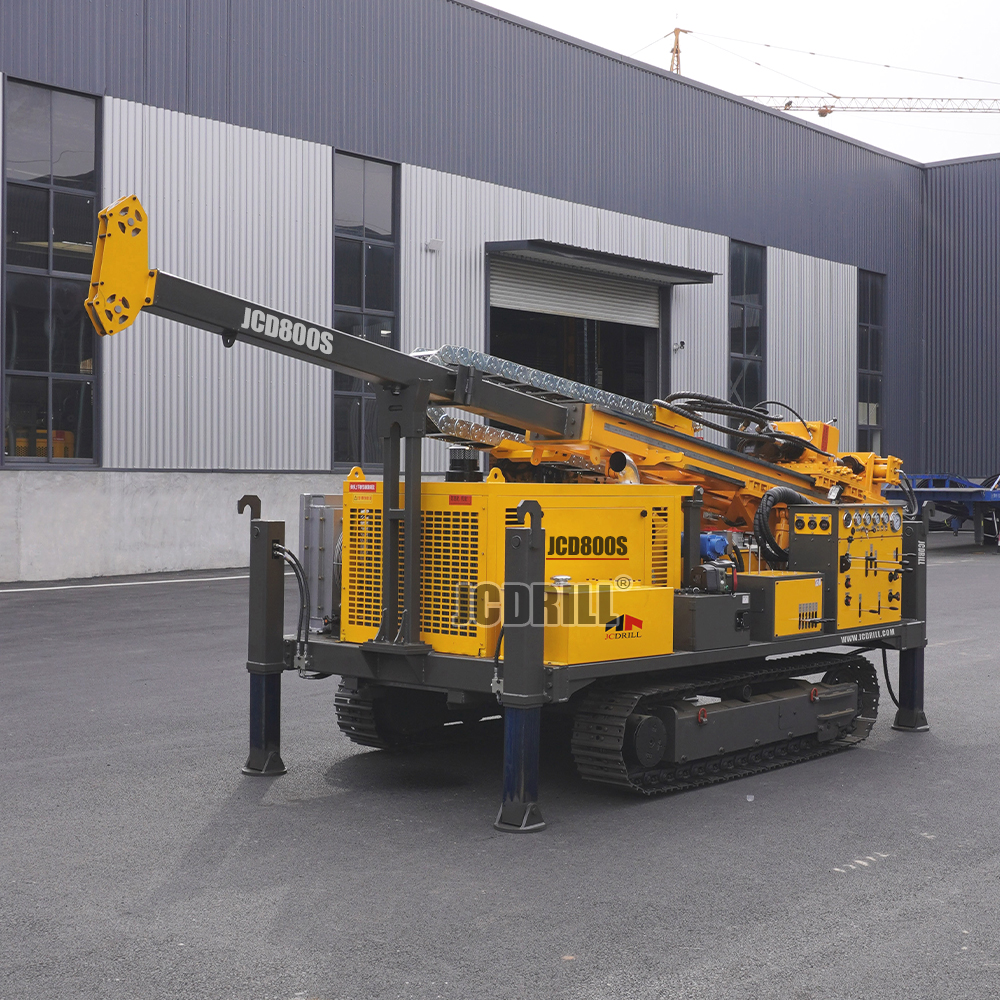

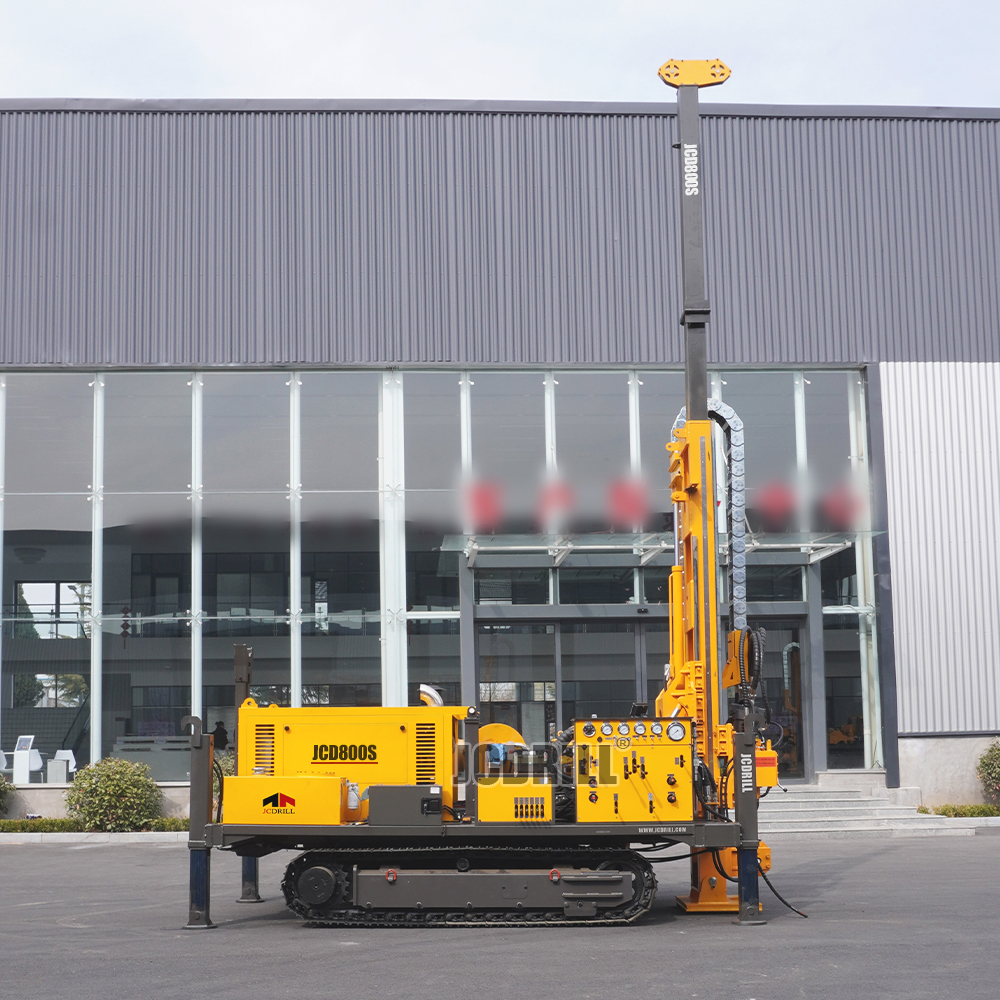

JCD800S Full Hydraulic Diamond Core Drilling Rig Supplier

Hold Diameter: 121mm

Drilling Depth:1000,700,500,300m

Drilling Method: Wireline Diamond Core Drilling

>> Application

JCD800S-The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China.

Inquire Now Chat Now

PRODUCT DESCRIPTION

>> Characteristics

This type of drill rig could substitute imported products. It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.

The drill rig is equipped with a series motor driving pump. The feeding and lifting of rotator are driven in the structure of cylinder directly pushing, with a 3.5m(11.5 feet) stroke. The rotation of spindle is driven by a single engine. It has four mechanical shifts of range of speeds, and the speed could be adjusted hydraulicly with stepless change.

The rig is simple in structure. It is light and easy for transference; the mast has the functions of sliding and touching ground; the spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and relocation. The spindle hole is in large diameter.

>> Specification

Specification	Unit	JCD800S	Specification	Unit	JCD800S
Drilling Capacity			Rope Hoist
Drilling Capacity		HTW-NTW-BTW	Lifting Capacity	kg	800
Drill Depth	m	400-900-1000	Speed	RPM	100-300
Hydraulic System			Wire Rope Diameter	mm	6
Rated Pressure	MPA	28	Rope Capacity	m	900
Rated Flow	L/min	280	Walking System
Heat Dissipation		Air Cooling	Operation Type	Manual & Remote Control
Engine			Walking Speed	KM/H	3.5
Brand		YUCHAI	Climbing Angle	°	40
Type		Turbocharger	Mud Pump
Rated Speed	RPM	2400	Model		BW-150
Rated Power	kW	118	Flow	L/MIN	0-150
Drilling System			Pressure	MPA	0-7
Torque	N.M.	450-2200	Hydraulic Generator
Speed	RPM	1300	Type	Variable Frequency Brushless, Maintenance-Free
Tower Type		One-piece Ground-touching	Power	KW	11
Feeding Stroke	mm	2400	Voltage	V	220/ 380
Drilling Angle	°	45-90	Weight & Dimensions
Max. Pull Up Capacity	Ton	24	Transport Size	mm	4900* 2100* 2360
Max. Push Down Capacity	Ton	12	Weight	Ton	7
