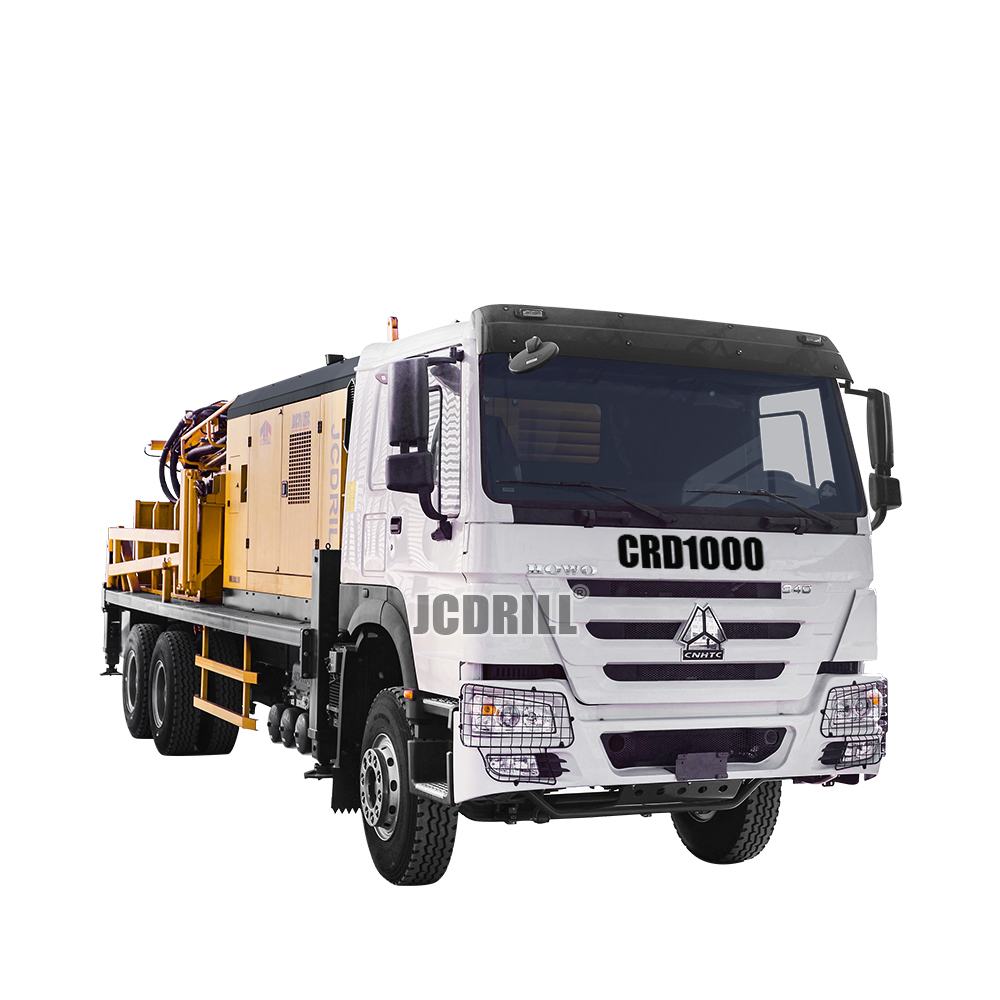

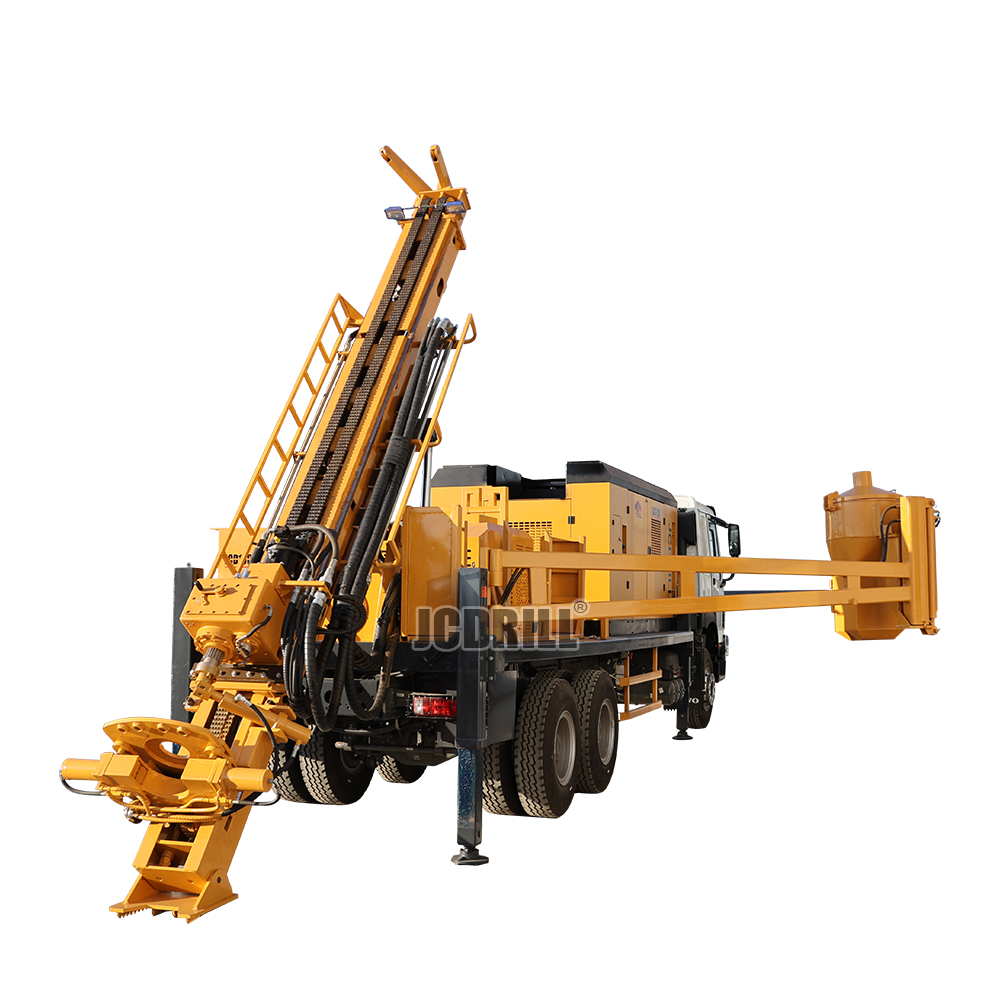

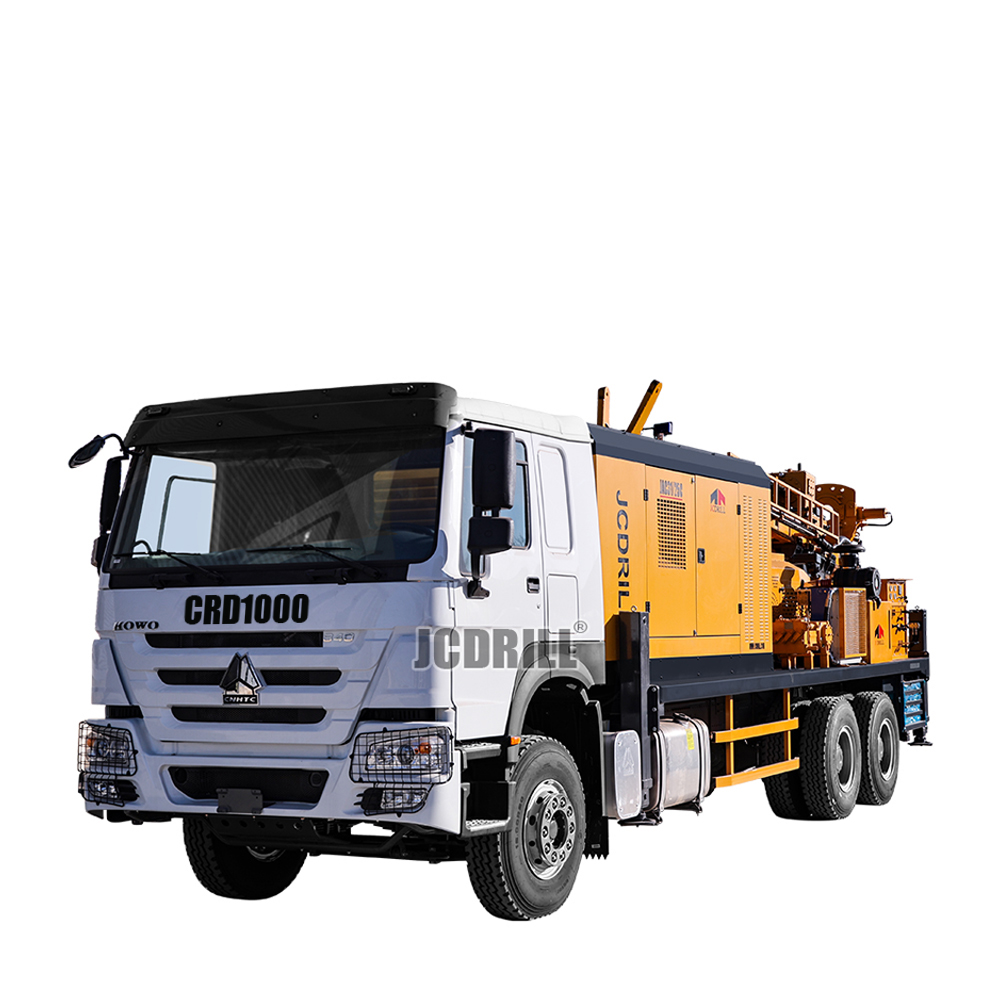

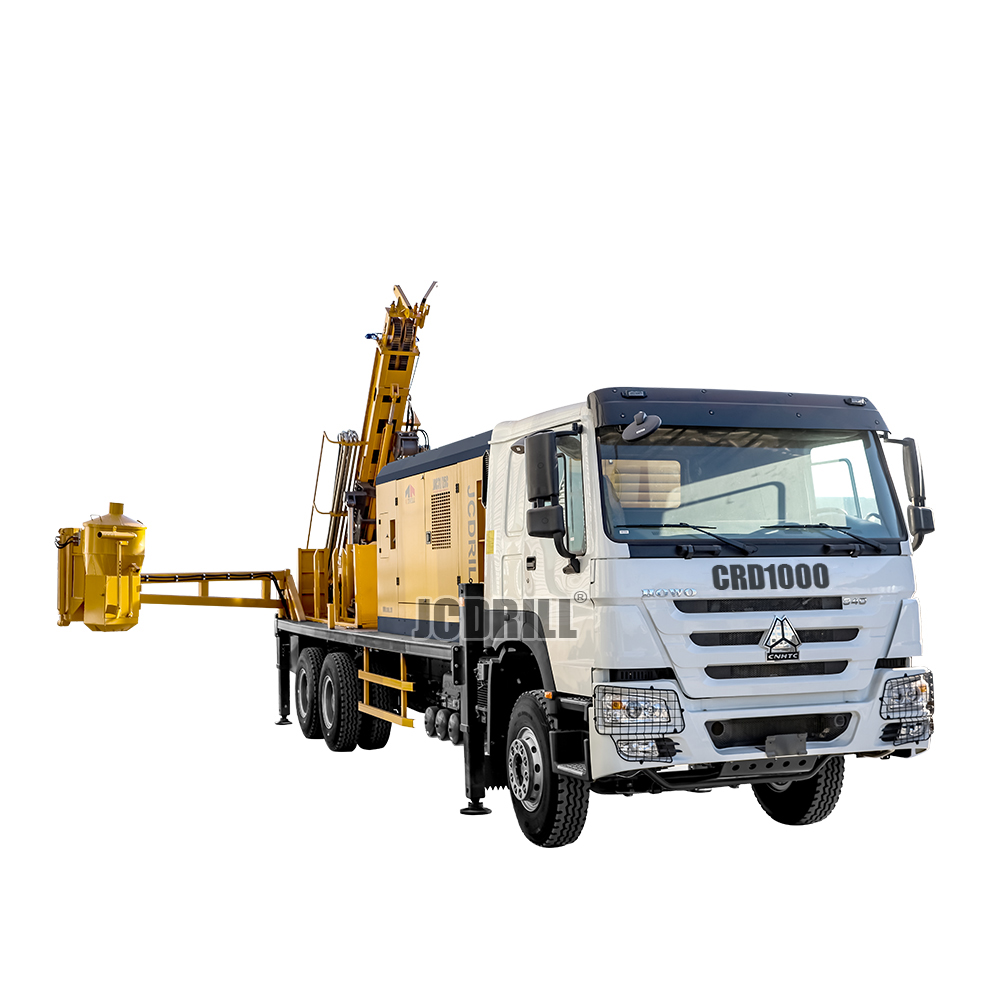

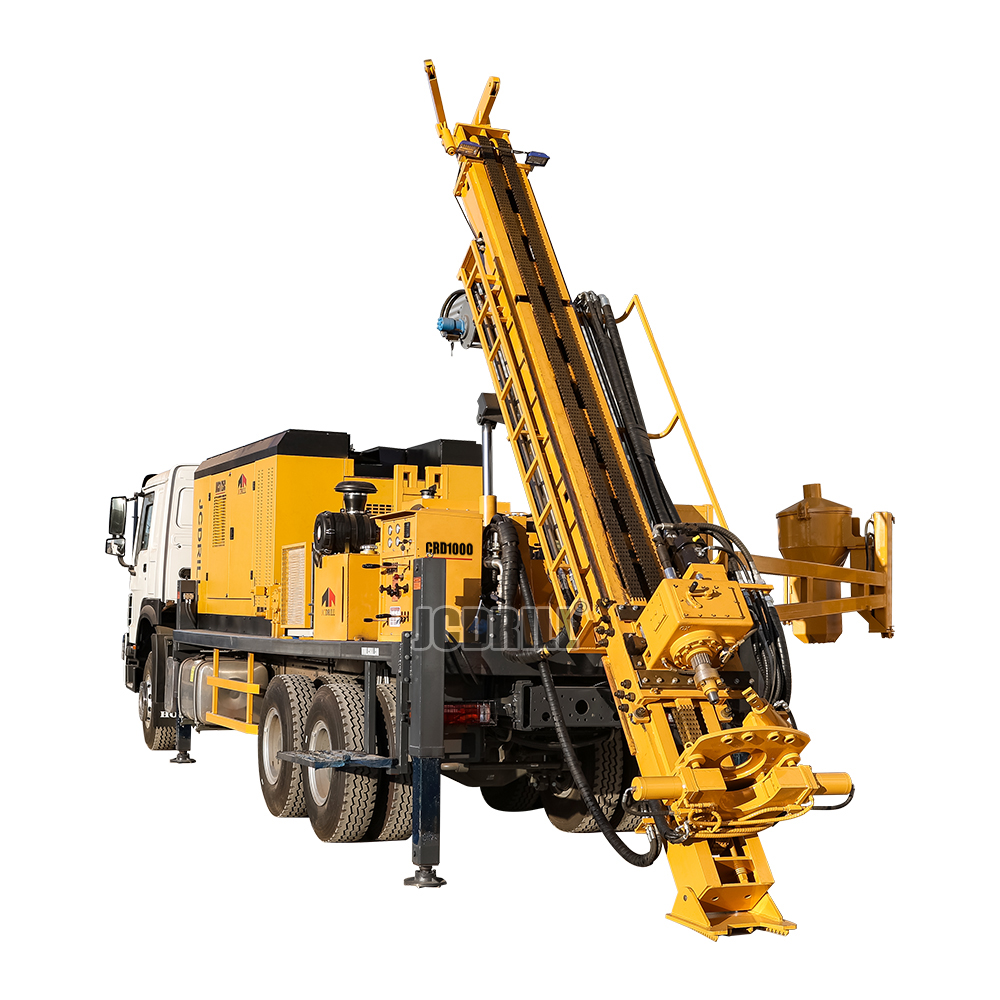

CRD1000 Hydraulic Truck Mounted Diamond Core Mining Drilling Rig Machine

Hold Diameter: 121 mm

Drilling Depth:1000 700 500 300 m

Drilling Method: Wireline Diamond Core & RC Drilling

>> Application

CRD1000 integrates high-recovery wireline core drilling with high-speed reverse circulation (RC) drilling in a single, versatile platform. Engineered for mineral exploration, grade control, and deep sampling applications where both geological accuracy and operational efficiency are critical

Inquire Now Chat Now

PRODUCT DESCRIPTION

>> Characteristics

>> Specification

Specification	Unit	CRD1000
Drilling Capacity
Drilling Capacity		BTW-NTW-HTW-PTW
Drill Depth	m	1200-900-600-200
Drive Head
Drive Mode		Forward & Reverse
Transmission Type		Gear Drive
Spindle Speed	rpm	200–1200 rpm
Max Torque	N·m	2300
Feeding System
Stroke	mm	2200
Feeding Speed		Variable
Feeding Force	T	4
Drilling Angle	°	10–90
Drill Pipe Length	mm	1500
Engine
Brand / Power	kW	Cummins 132
Rated Speed	rpm	2200
Rod Holder
Max Inner Diameter	mm	118
Holding Capacity	kg	13,000
Hydraulic Winch
Lifting Capacity	T	0.6
Lifting Speed	m/min	150
Wire Rope Capacity	m × mm	1200 × 6
Dimensions & Weight
Overall Weight	kg	7600
Dimensions (L×W×H)	mm	4500 × 2300 × 2400
