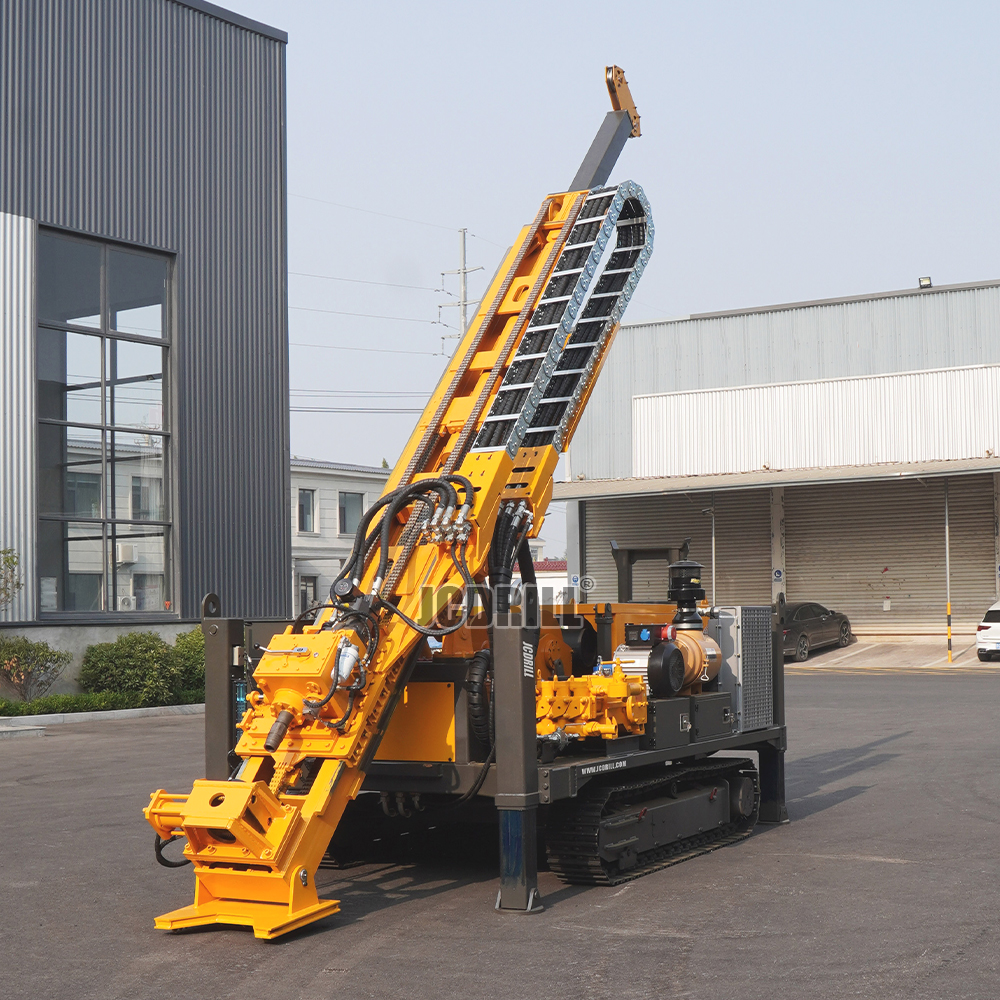

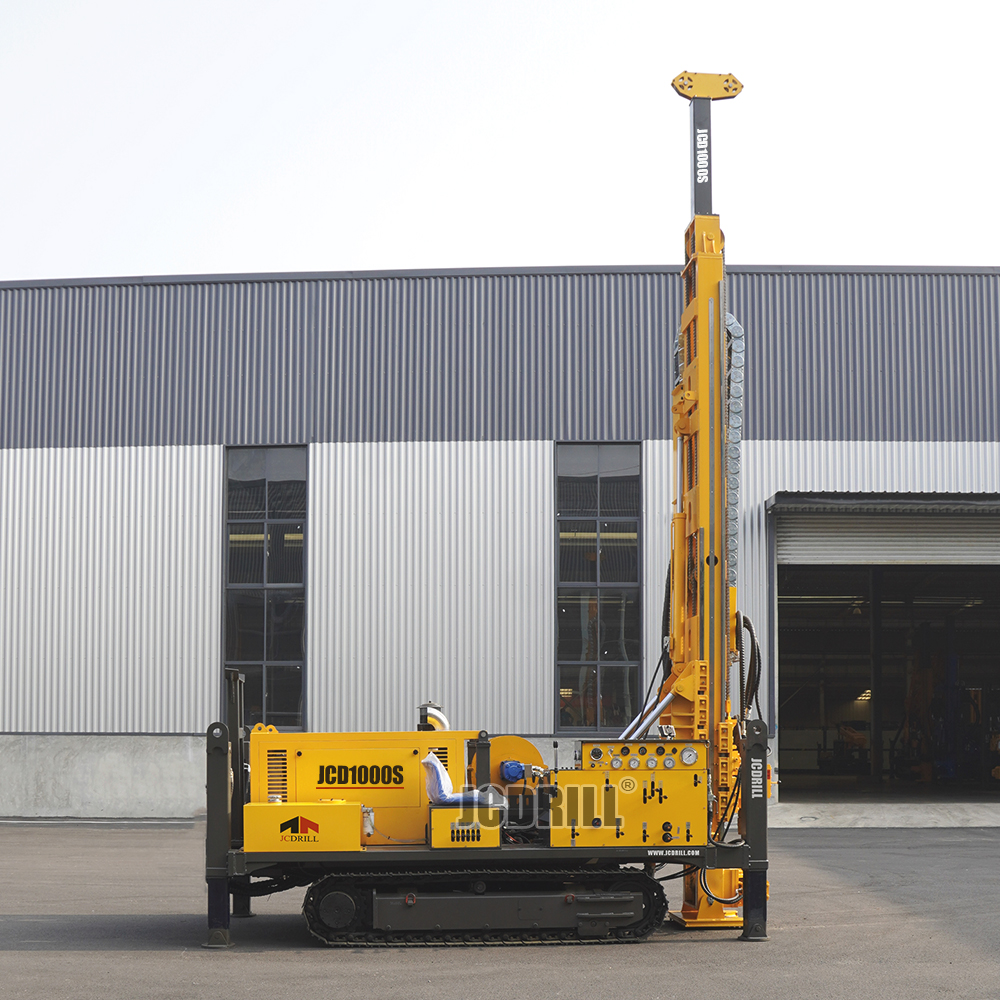

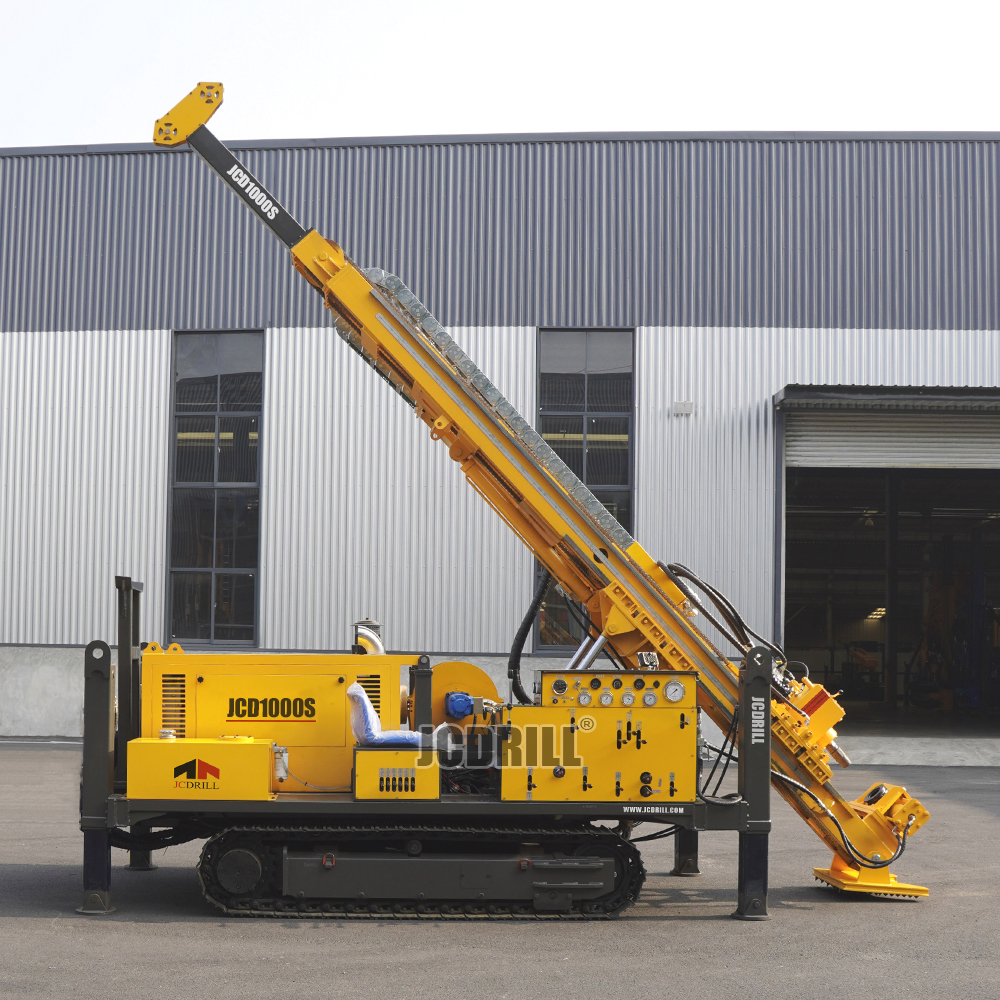

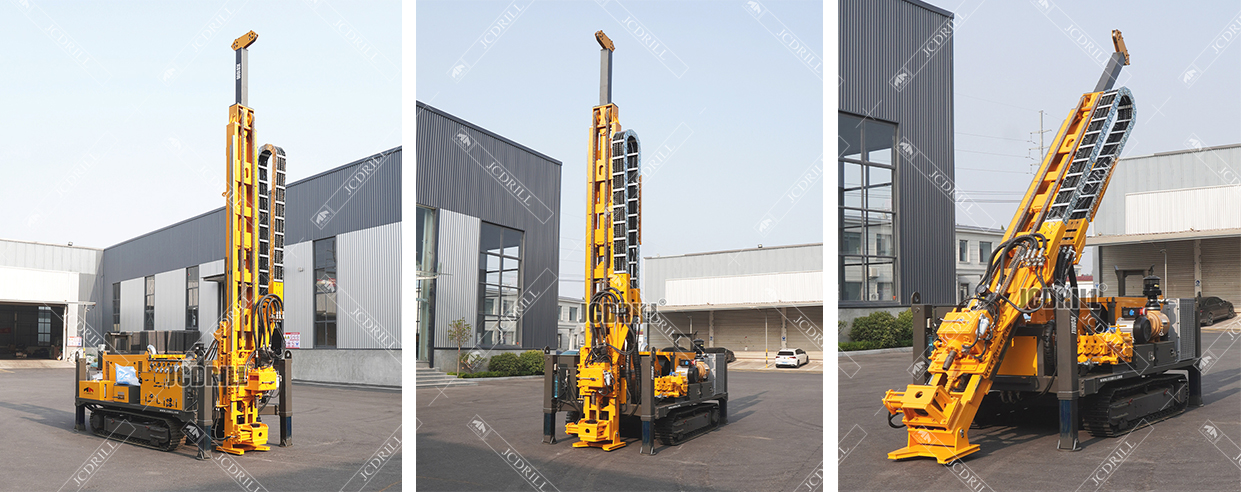

JCD1000S Full Hydraulic Diamond Core Drilling Rig

Hold Diameter: 121 mm

Drilling Depth:1000 700 500 300 m

Drilling Method: Wireline Diamond Core Drilling

>> Application

JCD1000S The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China.

Inquire Now Chat Now

PRODUCT DESCRIPTION

>> Characteristics

This type of drill rig could substitute imported products. It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.

The drill rig is equipped with a series motor driving pump. The feeding and lifting of rotator are driven in the structure of cylinder directly pushing, with a 3.5m(11.5 feet) stroke. The rotation of spindle is driven by a single engine. It has four mechanical shifts of range of speeds, and the speed could be adjusted hydraulicly with stepless change.

The rig is simple in structure. It is light and easy for transference; the mast has the functions of sliding and touching ground; the spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and relocation. The spindle hole is in large diameter.

>> Specification

Specification	Unit	JCD1000S
Drilling Capacity
Drilling Capacity		HTW-NTW-BTW
Drill Depth	m	500-1100-1400
Hydraulic System
Rated Pressure	MPA	28
Rated Flow	L/min	300
Heat Dissipation		Air Cooling
Engine
Brand		YUCHAI
Type		Turbocharger
Rated Speed	RPM	2400
Rated Power	kW	118
Drilling System
Torque	N.M.	1000-3500
Speed	RPM	1300
Tower Type		One-piece Ground-touching
Feeding Stroke	mm	3500
Drilling Angle	°	45-90
Max. Pull Up Capacity	Ton	28
Max. Push Down Capacity	Ton	14
Rope Hoist
Lifting Capacity	kg	1000
Speed	RPM	100-300
Wire Rope Diameter	mm	6
Rope Capacity	m	1100
Walking System
Operation Type		Manual & Remote Control
Walking Speed	KM/H	3.5
Climbing Angle	°	40
Mud Pump
Model		BW-150
Flow	L/MIN	0-150
Pressure	MPA	0-7
Hydraulic Generator
Type	Variable Frequency Brushless, Maintenance-Free
Power	KW	11
Voltage	V	220/ 380
Weight & Dimensions
Transport Size	mm	6000* 2100* 2400
Weight	Ton	8.5
