Max.Hole Diameter:Φ105—Φ350
Max. Drilling depth:1000m
Drilling Method: DTH & Air Drilling & Mud Drilling
>> Application
The Integrated Core & DTH Water Well Drilling Rig represents a revolutionary dual-purpose drilling solution engineered for geological exploration and water resource development. Combining advanced coring capabilities with robust water well drilling functionality, this rig delivers unmatched versatility for mining, geological survey, hydrogeological, and rural water supply projects.
Share
PRODUCT DESCRIPTION
JCD1000T The Integrated Core & Water Well Drilling Rig represents a revolutionary dual-purpose drilling solution engineered for geological exploration and water resource development. Combining advanced coring capabilities with robust water well drilling functionality, this rig delivers unmatched versatility for mining, geological survey, hydrogeological, and rural water supply projects.
>> Characteristics
Geological Core Drilling: Mineral exploration, geotechnical investigations, scientific research sampling
Water Well Development: Residential/commercial water supply, agricultural irrigation, hydrological monitoring wells
Environmental Drilling: Groundwater monitoring, contamination assessment, remediation well installation
Exploratory Drilling: Resource prospecting, stratigraphic analysis, foundation testing
>> Specification
| Specification | Unit | CRD1000 |
| Drilling Capacity | ||
| Drilling Capacity | HTW-NTW-BTW | |
| Drill Depth | m | 400-900-1000 |
| Hydraulic System | ||
| Rated Pressure | MPA | 28 |
| Rated Flow | L/min | 280 |
| Heat Dissipation | Air Cooling | |
| Engine | ||
| Brand | YUCHAI | |
| Type | Turbocharger | |
| Rated Speed | RPM | 2400 |
| Rated Power | kW | 118 |
| Drilling System | ||
| Torque | N.M. | 450-2200 |
| Speed | RPM | 1300 |
| Tower Type | One-piece Ground-touching | |
| Feeding Stroke | mm | 2400 |
| Drilling Angle | ° | 45-90 |
| Max. Pull Up Capacity | Ton | 24 |
| Max. Push Down Capacity | Ton | 12 |
| Rope Hoist | ||
| Lifting Capacity | kg | 800 |
| Speed | RPM | 100-300 |
| Wire Rope Diameter | mm | 6 |
| Rope Capacity | m | 900 |
| Walking System | ||
| Operation Type | Manual & Remote Control | |
| Walking Speed | KM/H | 3.5 |
| Climbing Angle | ° | 40 |
| Mud Pump | ||
| Model | BW-150 | |
| Flow | L/MIN | 0-150 |
| Pressure | MPA | 0-7 |
| Hydraulic Generator | ||
| Type | Variable Frequency Brushless, Maintenance-Free | |
| Power | KW | 11 |
| Voltage | V | 220/ 380 |
| Weight & Dimensions | ||
| Transport Size | mm | 4900* 2100* 2360 |
| Weight | Ton | 7 |
>> Shipping
JXY130 Core Drilling Rig for Drilling Well, Census Exploration
JCD1500S Mineral Exploration Drilling Rig Surface Core Drilling rig
JCDRILL JCD150 Crawler Hydraulic Surface Diamond Core Drilling Mining Drilling Rigs
JCD400S Diamond core drilling mining rig for ore sample Full Hydraulic Portable Drilling Rig
JCD600S Full Hydraulic Crawler Mounted Diamond Borehole Core Mining Drilling Rig Machine
JCD400T Full Hydraulic Diamond SPT Core Drilling Rig Supplier
JCD150A Hydraulic Soil Sampling Drilling Rig Exploration Auger Core Drill Machine
JCD1200S Core Drill Rig Hydraulic Borehole Drilling Equipment Geological Core Drilling Machine
JCD1000 Full Hydraulic Crawler Mounted Diamond Core Mining Drilling Rig Machine
JCD2000 Full Hydraulic Crawler Mounted Surface Diamond Core Rotary Drilling Rig Machine
JCD1000T Hydraulic Crawler Mounted Diamond Core Mining Drilling Rig Mining Machine

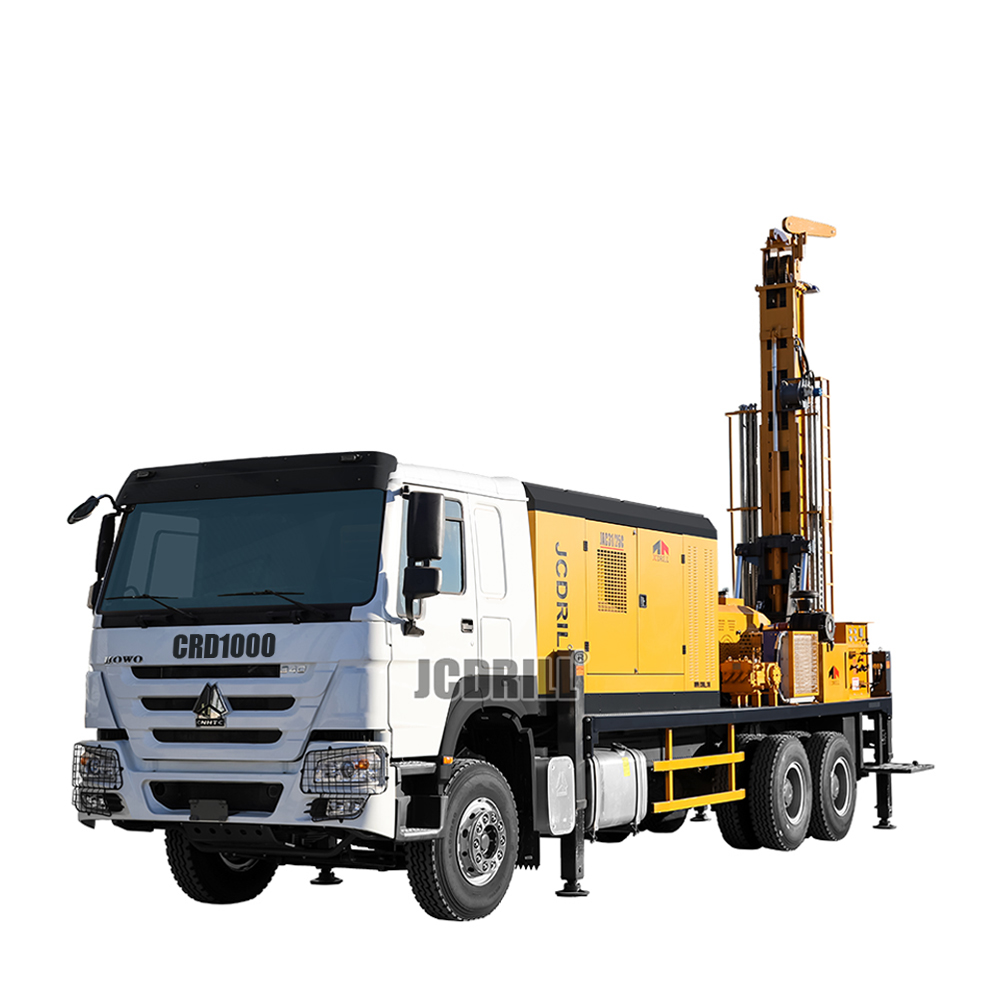

CRD1000 Hydraulic Truck Mounted Diamond Core Mining Drilling Rig Machine
|
