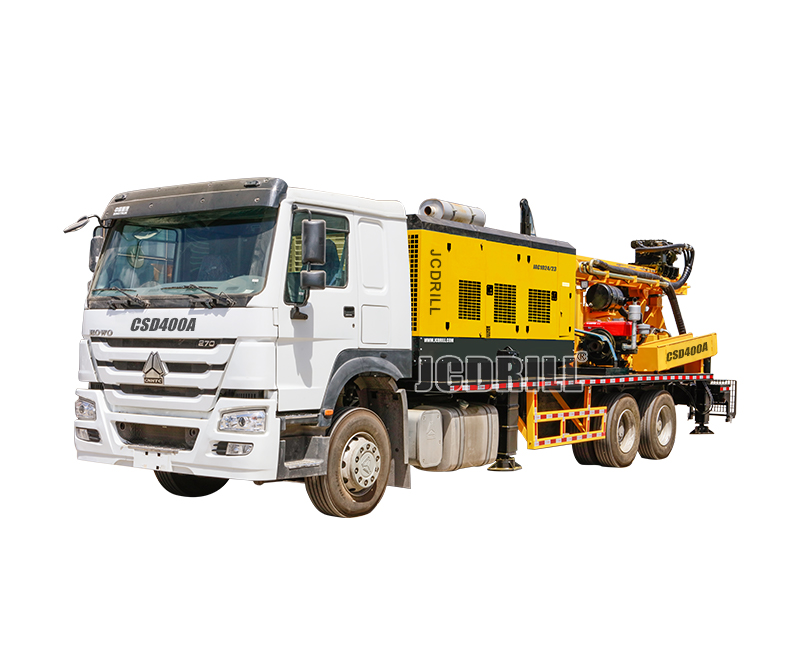

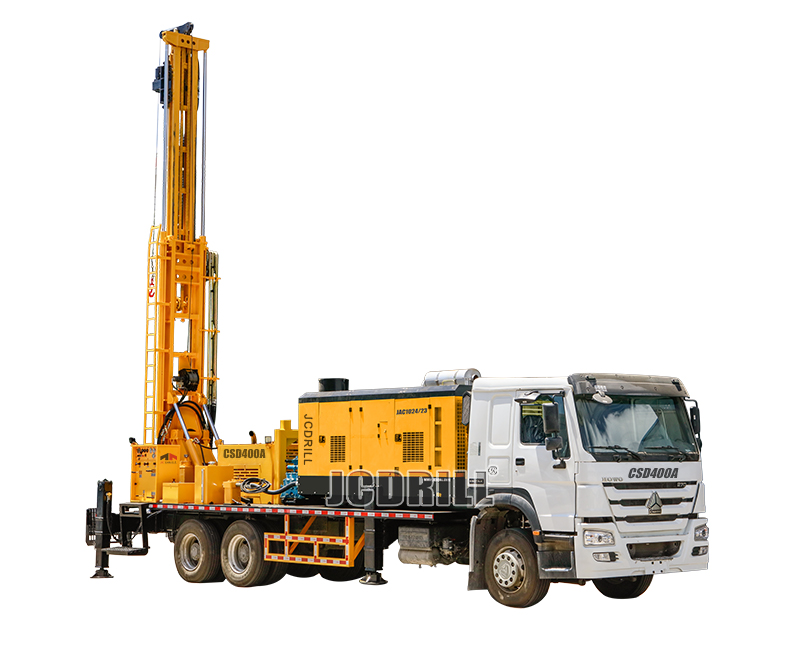

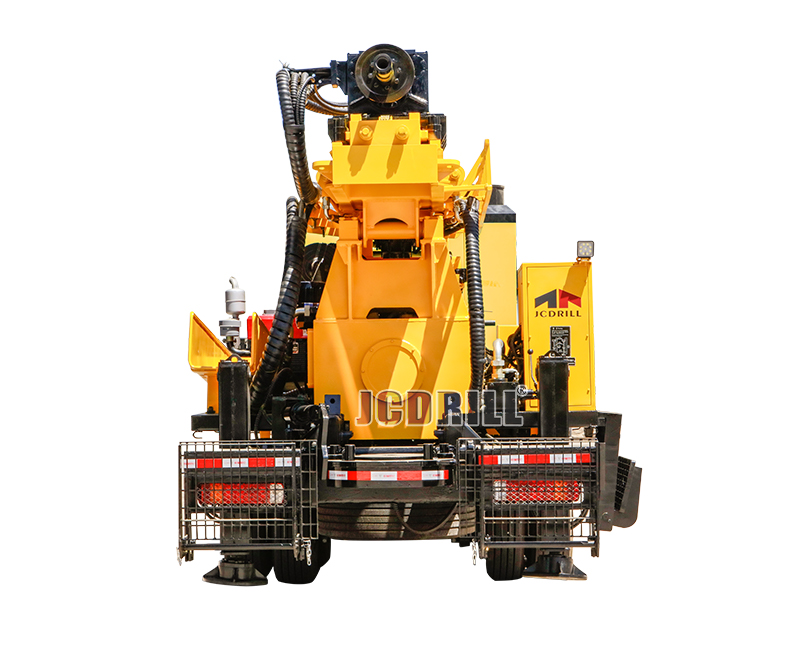

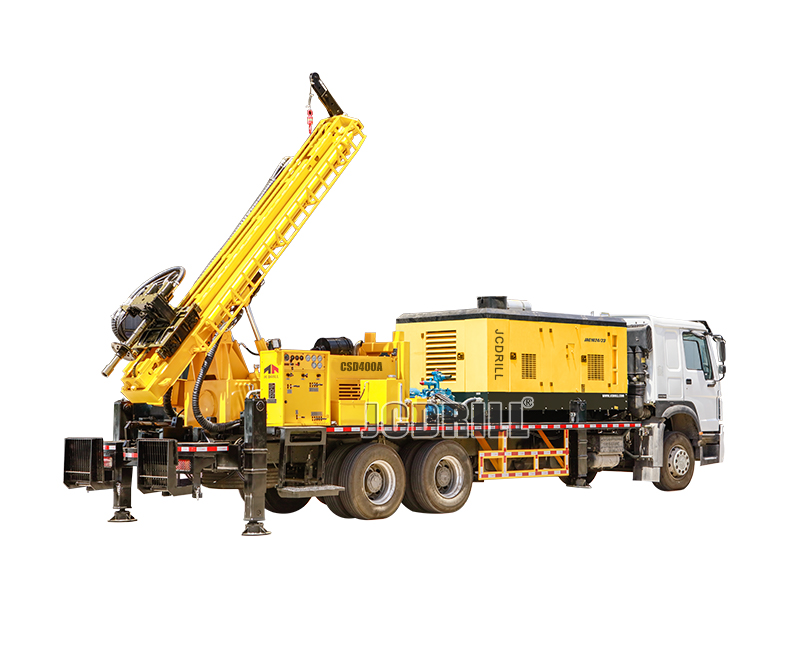

Truck Mounted Water Well Drilling Rig with Air Compressor Compressor on board



Max. Drilling depth:400m

Drilling Method:Air Drilling & Mud Drilling

>> Application

CSD400A truck mounted water well drilling rig mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project.



CSD series truck mounted water well drilling rig of CSD400A uses full hydraulic control and driver the rotation of drilling tools with high efficiency. In difficult roads, the truck machine is very flexible and it can used in exploration of hydrology wells, shallow layer of shale gas, terrestrial heat, coal-min gas exploration or salvage work and so on. The advantages of truck water well drilling rigs is full hydraulic, truck as chassis, feeding system and others.

>> Characteristics

>>The drilling rig can use air DTH Hammer drilling and mud drilling.

>>Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>>The truck chassis adopts the 6X4 special crane chassis of brand Kaima&Foton and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed system are set up on the chassis.

>>It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW850/2 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

>>The power of drilling rig comes from a diesel engine, 112KW CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>>The rotary head, rotation speed is 60-120rpm stepless adjustment and the rotary torque is 9600Nm.

>>The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

>>It can set up a generator which is convenient to welding or illuminate for work at night.

>>Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

>>The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

>>The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.

>>Competitive in price, low cost of maintain.

>> Specification

Geology Drilled
All kinds
Drilling Method
DTH & Mud Rotary
Hole Depthm400
Hole DiametermmΦ140—Φ450
RotationRotation TorqueNm9600
Rotation Speedrpm60-120
Feeding SystemDrill Pipe Diametermm89/102/114
Drill pipe lengthmm3000/4500/6000
Push down capacityT8.5
Pull back capacityT20
WinchLifting force of tool winchT1.5
Length of steel wire ropem100
EngineDiesel Engine type
Rated powerKw92
Electrical SystemVolt24

Air Compressor

(On Board)
Compressor TypeRotary Screw/2 Stage
Pressure RequiredBar25
Air consumptionm³/min31
Rated Horse powerHp400
Discharge Standard
Drive type
Max. SpeedKm/h102. 9
Steering wheel
Mud PumpModel
Discharge pressure (Mpa)Mpa5
Dimension&WeightNet WeightKgs21500
Shipping (L*W*H)mm11000*2550*3630
Working size(L*W*H)mm10500*2550*9830
All truck brand & Engine brand  available according to your requests!

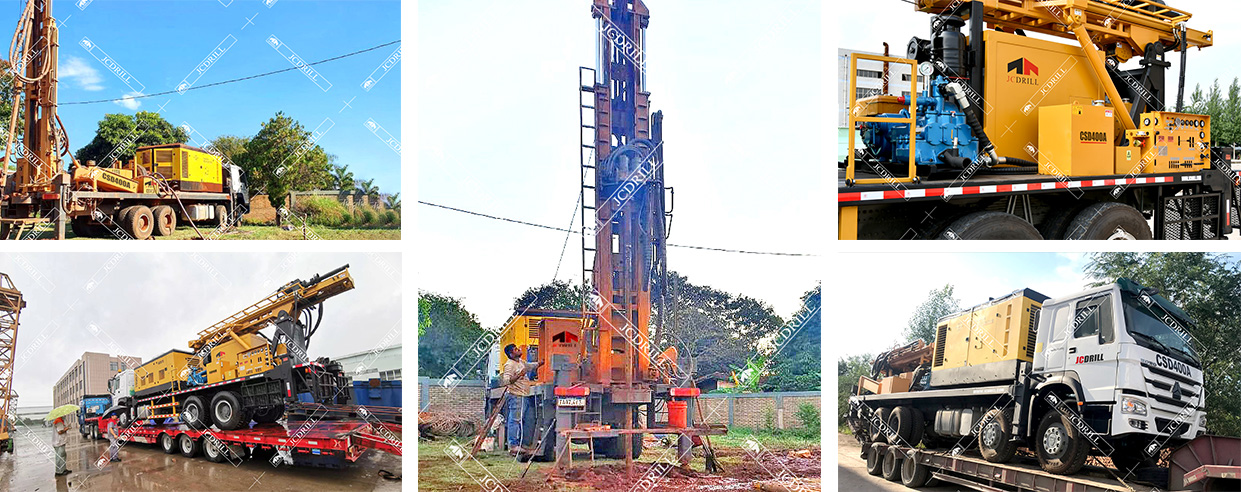

>> Shipping
